PULSAR TELOS LRF XQ35 Manual

Telos LRF  thermal imaging monoculars are designed for use both at night-time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection.

Unlike night-vision devices based on electron-optical converters, thermal imaging devices do not need an external light source and are resistant to bright light.

Telos LRF  thermal imagers are designed for various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.

Telos LRF  thermal imagers are equipped with a built-in laser rangefinder with a range of up to 1000 m and a measurement accuracy of ± 1 m.

To get started, see the sections:

Battery Charging

Battery Installation

Powering on and Image Setting

Laser Rangefinder

Stream Vision 2

• Telos LRF thermal imager
• LPS7i battery pack with protective cover
• Spare battery compartment cover
• Power adapter
• USB Type-C cable with USB Type-A adapter
• Case
• Hand strap
• Quick start guide
• Lens cloth
• Warranty card

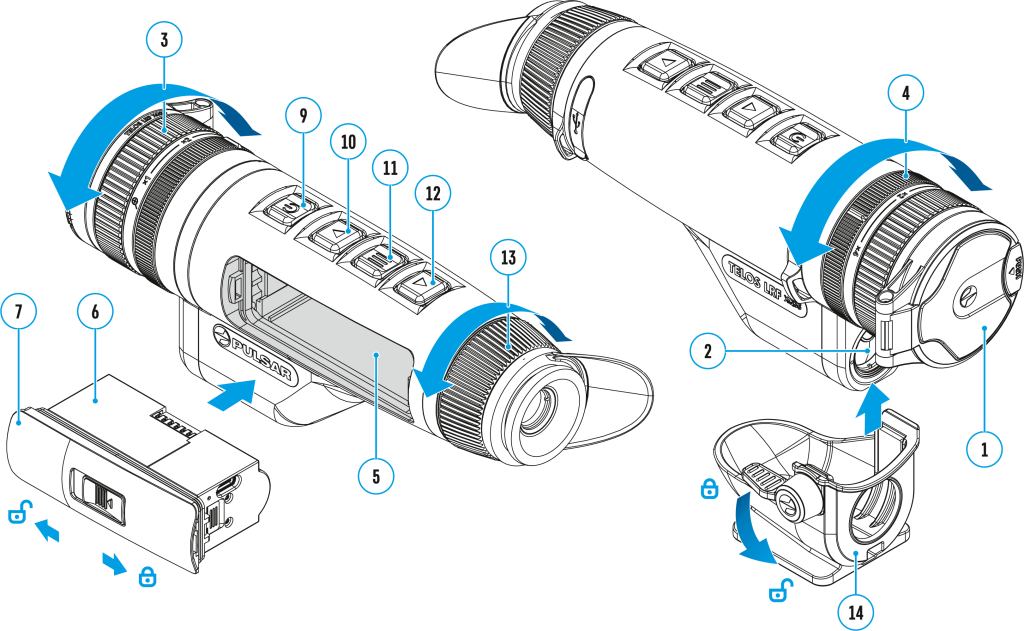

1. Lens cover
2. Laser rangefinder
3. Lens focus ring
4. Digital zoom adjustment ring
5. Battery compartment
6. LPS7i battery
7. Battery compartment cover
8. Battery protective cover
9. ON/OFF/Calibration button
10.  UP/REC button
11.  MENU button
12.  DOWN/LRF button
13.  Eyepiece diopter adjustment ring
14. Tripod adapter (available separately)
15. Operation status LED indication
16. Microphone
17. USB Type-C connector
18. LED indication of battery charge in the device

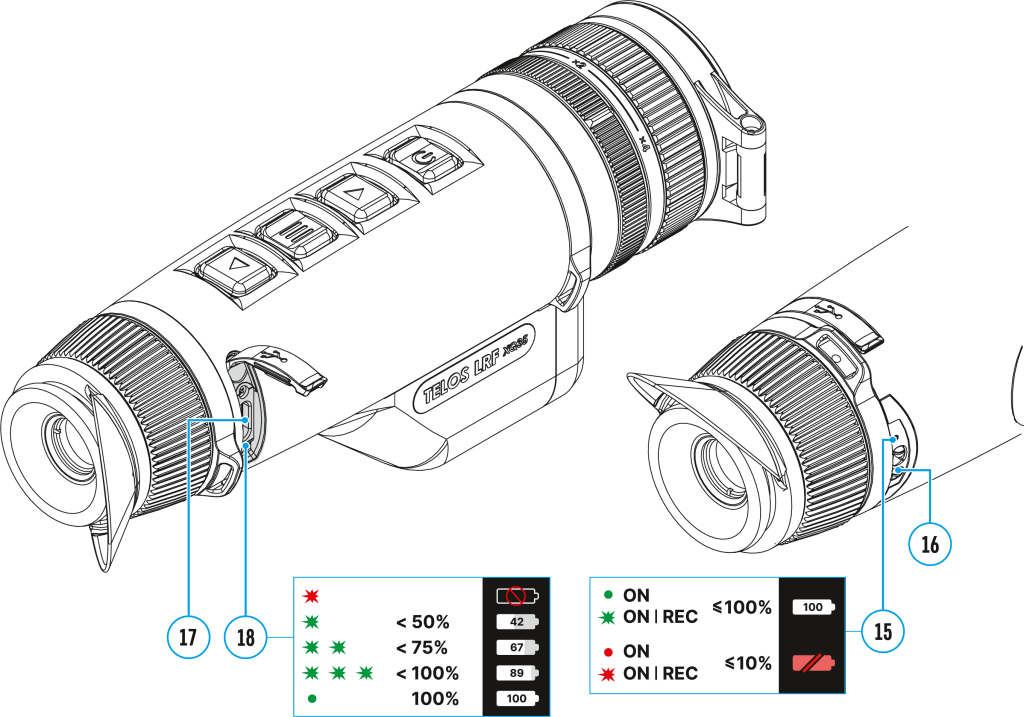

LED indicator (15) displays the current status of the device:

LED Indicator	Operating Mode
	Device is turned on
	The device is turned on/video recording
	The device is turned on/battery charge < 10%
	The device is turned on/video recording/battery charge < 10%

• Functional and ergonomic design
• 8-colour display palette
• 3 calibration modes: Manual, Semi-Automatic, Automatic
• Detection range up to 1800 m/1969 yds
• Smooth digital zoom 2.5-10x
• Three levels of sensitivity enhancement: Normal, High, Ultra
• Integrated laser rangefinder
• Display-Off function
• Display dimming function
• Auto shutdown function
• Device firmware update using the free Stream Vision 2 App
• Defective pixel repair
• Updatable firmware
• Wide operating temperature range (-25°С to +40°С / -13°F to +104°F)
• Fully waterproof (IPX7 rated)

Video/Audio Recording

• Built-in video and sound recorder
• Integration with iOS and Android devices
• Wi-Fi remote control and viewing using a smartphone
• Storing photos and videos in Cloud when using the Stream Vision 2 App

Battery Pack

• Quick Change Li-Ion Battery Pack LPS7i
• Charging from USB Power Bank
• Quick-Charge power delivery​

• It is not recommended to charge the battery with the USB cable and wireless charger at the same time. This will not increase the charge rate and may damage the battery.
• Use the USB Type-C cable and power adapter supplied with the device (or purchased separately) to charge the LPS 7i batteries.
• Follow the safety precautions described in its Manual when using the wireless charger.
• Do not place any foreign objects between the battery and wireless charger platform.
• Do not charge the battery immediately after bringing it from cold to warm. Wait at least 30 minutes for the battery to warm up.
• Do not leave the battery unattended while charging.
• Do not use the power adapter and wireless charger if they have been modified or damaged.
• Do not leave the battery plugged in after charging is complete.
• Do not expose the battery to high temperatures and naked flame.
• Do not use the battery as a power source for devices that do not support LPS 7i batteries.
• Do not disassemble or deform the battery.
• Do not drop or strike the battery.
• Do not submerge the battery.
• Keep the battery out of the reach of children.

• The battery should be partially charged (50 to 80 %) for long-term storage.
• Charge at an ambient temperature of 0°C to +35°C (32°F to 95°F) or the lifespan of the battery will decrease significantly.
• Using the battery at sub 0°C (<32°F) ambient temperature decreases battery capacity. This is normal and not a defect.
• Using the battery at temperatures outside the range of -25°C to +50°C (-13°F to 122°F) may reduce battery life.
• The battery is short-circuit protected. Any situation that may cause short-circuiting should be avoided.

The Telos LRF thermal imager comes with an LPS7i rechargeable Lithium-ion battery. LPS7i batteries support USB Power Delivery fast charging technology when using a standard charging set (USB Type-C cable, power adapter). Before first use, make sure the battery is fully charged. LPS 7i batteries also support wireless charging.

The icon in the status bar will flash when the battery is low. The battery needs to be charged.

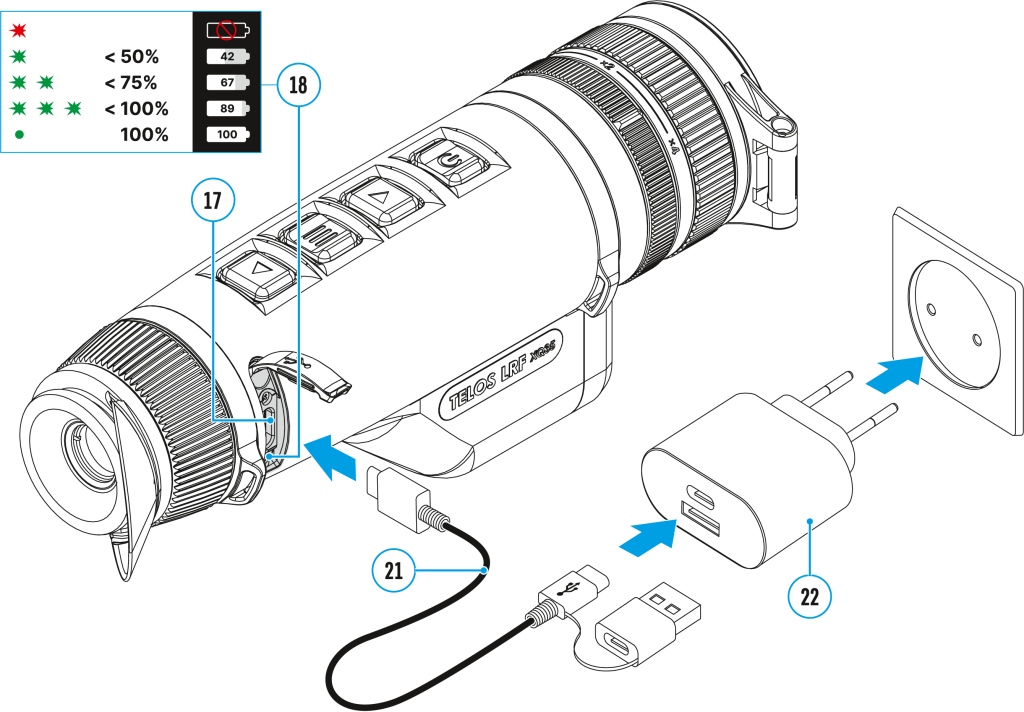

Option 1. USB Charging

1. Install the LPS7i battery in the battery compartment of the device.
2. Connect the USB cable (21) to the USB Type-C connector (17) of the device.
3. Connect the other end of the USB cable (21) to the Power Adapter (22) by removing the USB Type-A adapter.
4. Plug the Power Adapter (22) into a 100-240 V socket.
5. Wait until the battery is fully charged (indication in the status bar: ).

If the device is off, the LED indicator (18) will display the battery charge status:

LED indication	Battery charge status
	Battery defective. Do not use the battery!
	Battery charge level is from 0% to 50%
	Battery charge level is from 51% to 75%
	Battery charge level is from 76% to 99%
	Battery is full

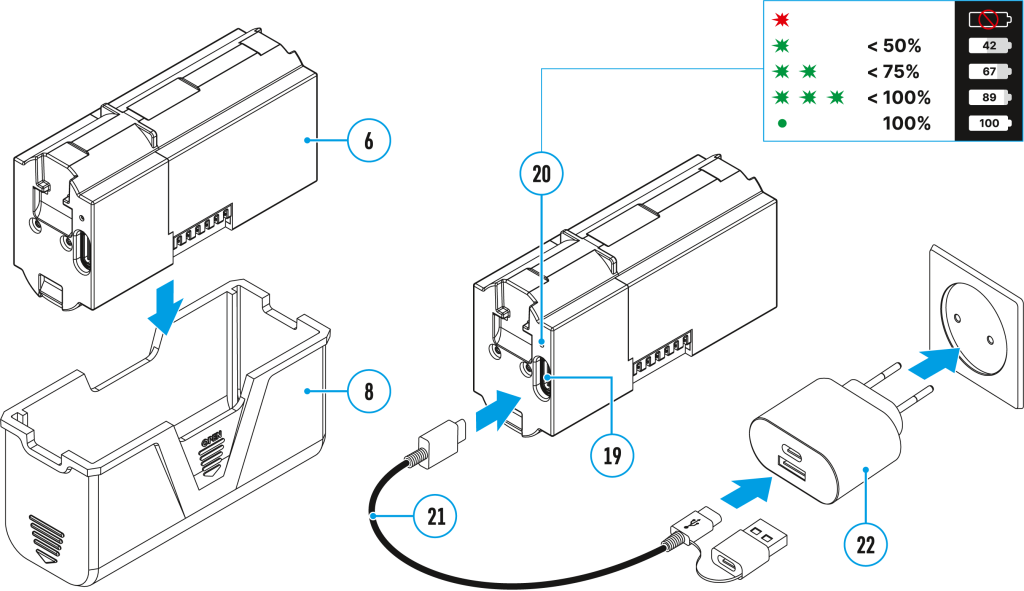

Option 2. Charging the battery via USB

1. Remove the protective cover (8).
2. Connect the plug of the USB Type-C cable (21) to the USB Type-C connector (19) of the battery.
3. For fast charging, connect the second end of the USB Type-C cable (21) to the Type-C connector of the power adapter (22) by removing the Type-A adapter from the plug. When connected to a computer or a Type-A power adapter, the battery will charge at normal speed.
4. Plug the power adapter (22) into a 100-240 V socket.
5. LED (20) will display battery charge level (see Table).

LED indication	Battery charge status
	Battery defective. Do not use the battery!
	Battery charge level is from 0% to 50%
	Battery charge level is from 51% to 75%
	Battery charge level is from 76% to 99%
	Battery is full

Option 3. Wireless Charging

1. Place the battery (6) with the sign side on the wireless charger* (23). For more efficient wireless charging, align the lightning bolt icon on the battery with the centre of the charger platform (23).
2. Turn on the wireless charger according to its instruction manual.
3. LED (20) will display battery charge level (see Table).

* Third party-purchasing. The LPS7i battery works with all QI standard wireless chargers.

Note: Charging with a USB cable is significantly faster than using a wireless charger.

1. Install the cover (7) on the LPS7i battery (6).

2. Insert the battery (6) into the battery compartment (5) until you hear a click. The battery contacts must face the top of the device (see diagram).

3. To remove the battery (6), slide the switch (A) on the cover (7) to the left .

Power can be supplied from an external source such as a 5 V or 9 V power bank.

1. Connect the external power source to the USB Type-C connector (17) on the device.
2. The device will switch to draw power from the external source while the LPS7i battery is gradually recharged.
3. A battery icon  will appear on the display showing the percentage-charged level.
4. An icon  will be displayed when the device is powered by an external power source and the LPS7i battery is not connected.
5. The device automatically switches to the LPS7i battery when the external power supply is disconnected.

Attention! Charging LPS7i batteries from an external source at temperatures below 0°C (<32°F) can reduce battery life. When using external power, connect the power bank to the device only after it has been turned on and working (warming) for at least several minutes.

1. Open the lens cover (1).
2. Press the ON/OFF (9) button briefly to turn on the device.
3. Adjust the eyepiece diopter ring (13) until the symbols in the display are sharp.
4. Rotate the lens focus ring (3) to focus on the object being observed.
5. To change the magnification, turn the digital zoom adjustment ring (4).

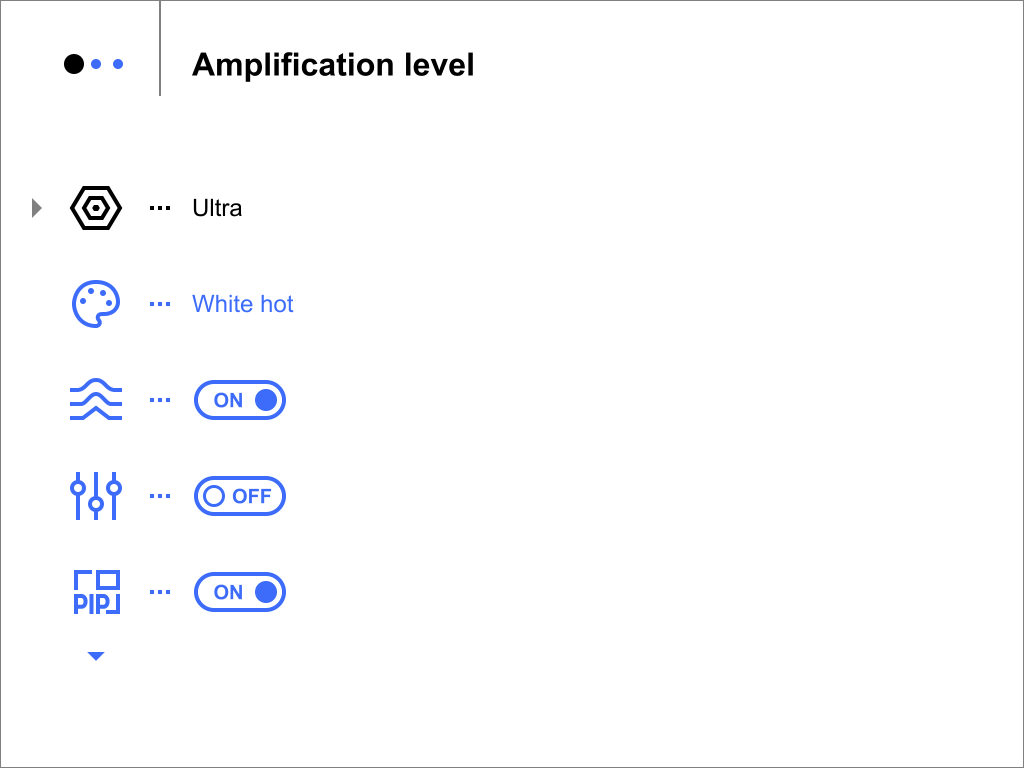

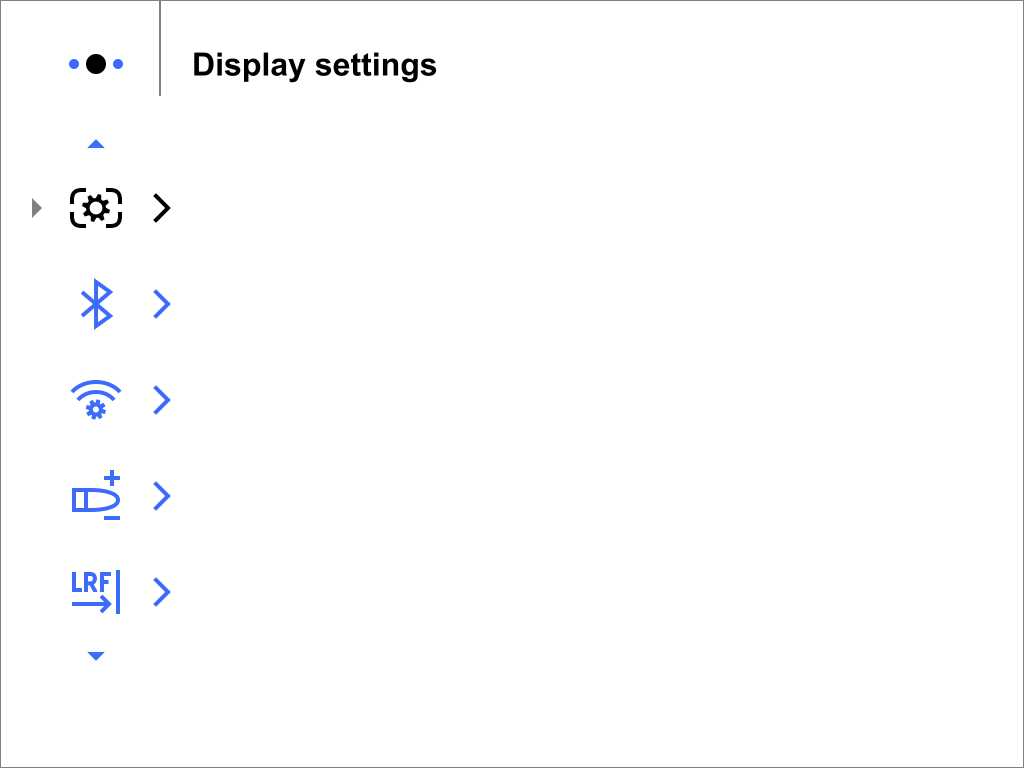

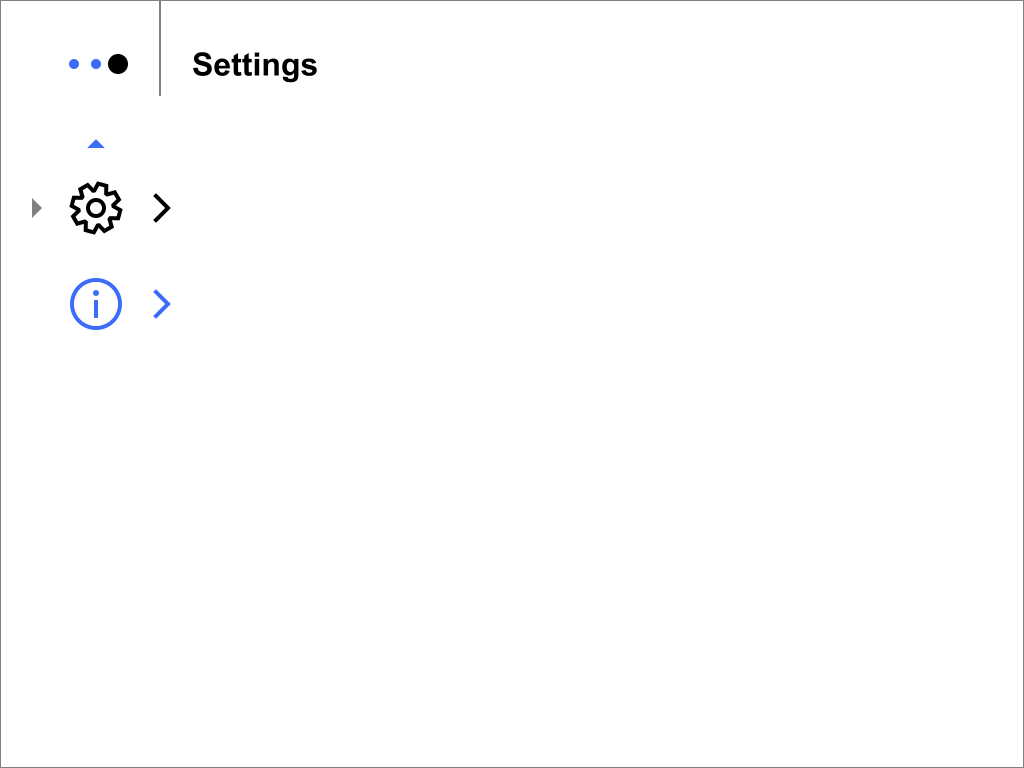

6. Enter the main menu with a long press of the MENU (11) button and select the desired calibration mode : manual (M), semi-automatic (SA) or automatic (A).
7. Calibrate the image by briefly pressing the ON/OFF (9) button (if the SA or M calibration mode has been selected). Close the lens cover when calibrating manually.
8. Activate the quick menu by briefly pressing the MENU (11) button to adjust the brightness and contrast of the display and select the desired amplification level (“Normal” , “High” , “Ultra” (for more details see the Quick Menu section).
9. Activate the Smoothing Filter in the main menu to improve the image as the amplification level increases.
10. Select one of the colour palettes in the main menu (for more details see the Colour Modes section).
11. Upon completion of use turn the device off by a long press of the ON/OFF (9) button.

Observation conditions: time of day, weather, type of observation objects affect the image quality. Custom settings for brightness, display contrast as well as the function of adjusting the microbolometer sensitivity amplification level will help to achieve the desired quality in a particular situation.​

Warning! Never point the lens at intensive energy sources such as laser radiation emitting devices or the sun. It can damage electronic components in the device. The warranty does not cover damage arising from failure to comply with operating instructions.

Adjusting the position of the hand strap

Opening the lens cover

Lens cover positioning (right/left)

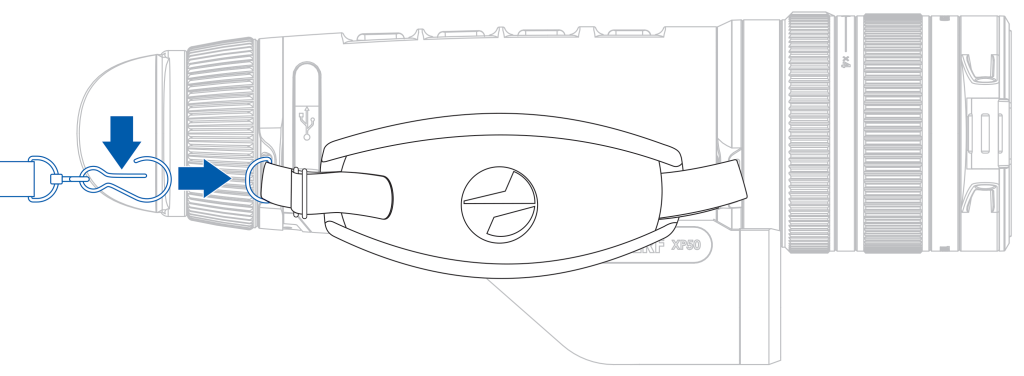

Installing a neck strap (sold separately)

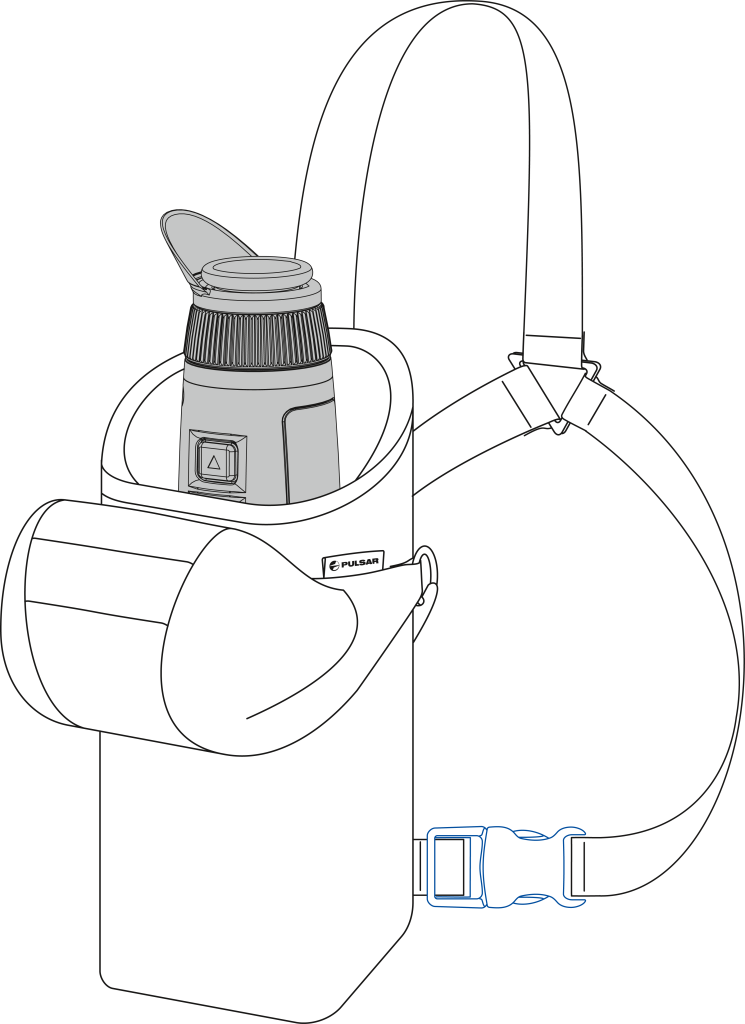

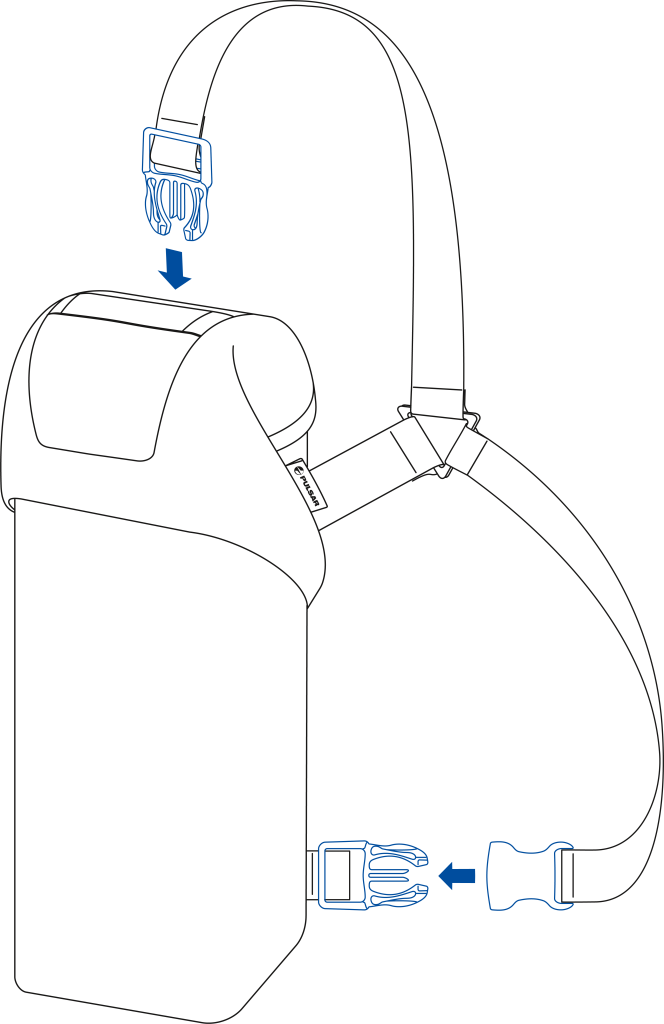

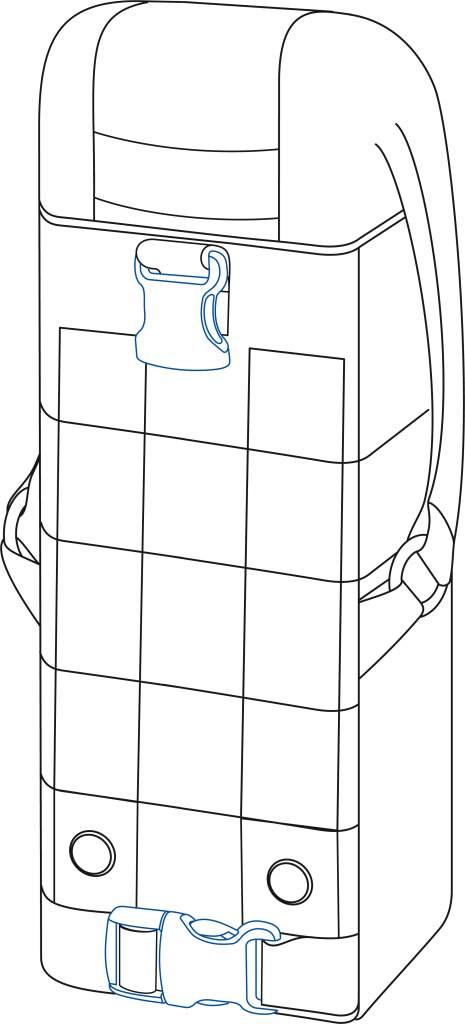

The carrying case comes with 3-point-strap for comfortable carrying of the case on the chest during intensive movement.

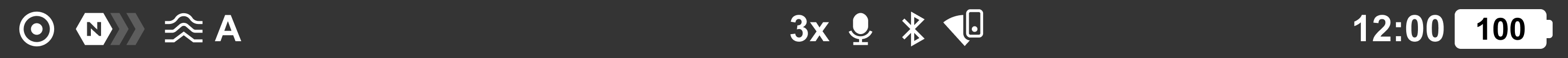

The status bar at the bottom of the display shows current operating statuses via icons, including:

• Colour Mode:

– White hot

– Black hot

• Amplification level
• Smoothing Filter (displayed when the function is on)
• Calibration Mode (in Automatic calibration mode a countdown timer will appear instead of the calibration mode icon 5 seconds before automatic calibration begins).
• Microphone
• Magnification
• Wi-Fi Connection
• Time
• Power Indication:

  – charge level if the device is powered by a battery

 – charge level if the device is charging and powered by a battery

 – no battery, the device is connected to an external power supply

 – low battery charge

The quick menu is used to quickly access the settings for brightness, contrast, and amplification modes.

• Enter the menu by briefly pressing the MENU (11).
• A short press of the MENU (11) button enables you to toggle between functions, as described below.

Brightness  – press the UP (10)/DOWN (12) buttons to change display brightness from 0 to 20.

Contrast – press the UP (10)/DOWN (12) buttons to change image contrast from 0 to 20.

Amplification Levels – allows you to select one of three amplifying levels of sensitivity.(Normal , High , Ultra ).

Note: To maintain brightness and contrast settings when changing amplifying levels, activate User mode.

• Press and hold the MENU (11) button to exit the menu or wait for 10 seconds to exit automatically.

Telos LRF thermal imagers are capable of video recording and photography. Videos and images are saved on the built-in memory card.

Before using this feature please set the date and time. (see General Settings section).

For information on how to watch recorded photos and videos, see the Stream Vision 2 user manual: Android, iOS

The built-in recorder operates in two modes – Video and Photo.

Video mode. Video recording

1. Switch to Video mode by pressing and holding the UP/REC (10) button.

2. Theicon and the remaining recording time in HH:MM (Hours:Minutes) format are displayed in the upper left corner, for example 4:20.

3. Press the UP/REC (10) button briefly to start video recording.

4. When the video recording starts, the iconwill disappear and the REC icon and timer in MM:SS (Minutes:Seconds) format will appear.

5. Pause and resume recording video with a short press of the UP/REC (10) button.

6. Stop recording video with a long press of the UP/REC (10) button.

7. Video files are saved to the built-in memory card after the video recording has been stopped.

8. Press and hold the UP/REC (10) button to switch between the Video and Photo modes (Video-> Photo-> Video…).

Photo Mode. Capturing an image

1. Switch to the Photo mode by pressing and holding the UP/REC (10) button.

2. Press the UP/REC (10) button briefly to take a photo. The iconflashes – the photo file is being saved to the built-in SD card.

Notes:

• You can enter and operate the menu during video recording.
• Recorded videos and photos are saved to the internal memory card in the format img_xxx.jpg (photos), video_xxx.mp4 (videos).
• Videos are recorded in clips with a maximum duration of 5 minutes. The number of recorded files is limited by the capacity of unit’s internal memory and video compression ratio.
• Regularly check the free capacity of the internal memory and move recorded footage to other storage media to free up space on the internal memory card.
• In case of a memory card error, you can use the format function in the General Settings section of the main menu.
• When the Display Off function is activated, video recording continues to run in the background.

The Telos LRF thermal imager is equipped with an integrated laser rangefinder.

Single Measurement Mode

1. Press the ON/OFF (9) button briefly to power the device on.

2. Activate the rangefinder by pressing the DOWN/LRF (12) button briefly. A red mark appears on the display.

3. Place the rangefinder’s reticle on the target. Press the DOWN/LRF (12) button briefly to measure the distance to the object once.

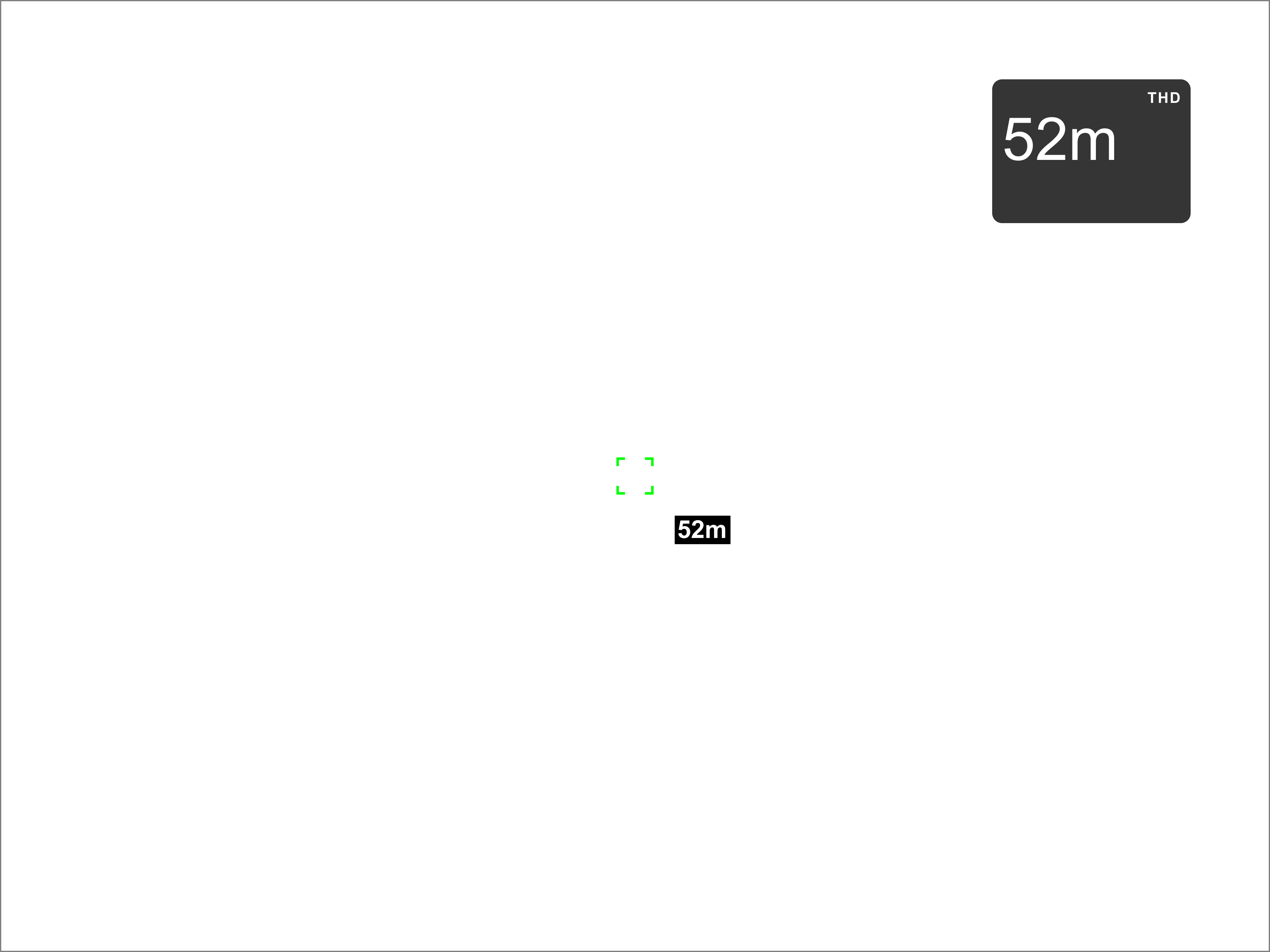

4. The measurement results are displayed in the upper right corner.

5. The rangefinder shuts down after 3 seconds of inactivity.

Scan Mode

1. Press the ON/OFF (9) button briefly to power the device on.

2. Activate the rangefinder by pressing the DOWN/LRF (12) button briefly. A red mark appears on the display.

3. Activate the scan mode by long pressing the DOWN/LRF (12) button to continuously measure the distance to objects.

4. The measurement results are displayed in the upper right corner.

5. Deactivate the rangefinder by long pressing the DOWN/LRF (12).

Notes:

• Additional rangefinder settings are available in the Rangefinder section of the main menu.
• To select a unit of measurement (meters or yards) go to Units of Measure  subsection of the General Settings section.
• When you turn on the rangefinder, the PiP window turns on.

Additional Information:

• The accuracy and distance of the measurement depends on the reflection coefficient of the object surface and weather conditions. The reflection coefficient depends on the texture, colour, size and shape of the object. Generally, lighter coloured objects and those with a shiny surface will have a higher reflection coefficient.
• Measurement accuracy can be influenced by the light conditions, fog, haze, rain, snow, etc. The results may be less accurate when operating in sunny weather or if the rangefinder is directed towards the sun.
• It is easier and more reliable to measure the distance to large objects than to small ones.

The functionality of the device makes it possible to smoothly increase the base magnification (please refer to the Magnification line in the Specifications table) of the device using the adjustment ring (4), as well as return to the base magnification

• To increase the digital zoom, turn the adjustment ring (4) clockwise.
• To decrease the digital zoom, turn the adjustment ring (4) counterclockwise.

The PiP (Picture-in-Picture) function allows you to see both the main image and a magnified image in a dedicated window.

• To turn on and off the PiP function see the PiP Mode section.
• Rotate the adjustment ring (4) to change the magnification ratio in the PiP
• The zoomed image is displayed in a dedicated window, while the image in the rest of the screen is displayed at base magnification (2.5x).
• When the PiP is turned on you can control both the discrete and smooth digital zoom. In this case the zoom value changes only take place in the dedicated window.
• When the PiP function is turned off, the screen will display at the magnification that was set in PiP mode.

This function darkens the screen, which aids the user’s concealment. However, the device stays on.

When this function is in use, the device switches to the standby mode, which allows it to be switched on instantly.

1. When the device is on, press and hold the ON/OFF (9) button. The display will turn off, the current time and the “Display off” icon will appear.
2. Turn the display back on with a short press of the ON/OFF (9) button.
3. When you press and hold the ON/OFF (9) button, the display shows the “Display off” icon with a countdown. Pressing & holding the button down for the duration of the countdown will power the device off completely.

The device has a function enabling wireless communication with external devices (smartphone or tablet) via Wi-Fi.

• Turn on the wireless module in the Wi-Fi Activationmenu option.

Wi-Fi is displayed in the status bar as follows:

Indication on the status bar	Connection Status
	Wi-Fi is switched off
	Wi-Fi connection is in progress
	Wi-Fi is switched on, no connection with device
	Wi-Fi is switched on, device connected

• The device is recognized by an external device as TELOS_XXXX where XXXX are the four last digits of the serial number.
• After entering the password on a mobile device (see Password Setup subsection of the Wi-Fi Settings section for more information on setting a password) and setting up a connection, the iconin the status bar will change to.
  .
• The Wi-Fi function will turn off automatically if there is not enough battery power for Wi-Fi. To use the Wi-Fi function again, you need to charge the battery.

1. Screw the tripod adapter (14) (purchased separately) onto the tripod mounting plate until it stops.
2. Attach the mounting plate to the tripod.
3. Install the Telos LRF device into the tripod adapter (14) so that the rangefinder lens aligns with the hole on the front of the tripod adapter (14).
4. Turn the handle of the tripod adapter (14) to position .
5. Level the Telos LRF horizontally and vertically using the tripod mounting plate.

Notes:

• The tripod adapter is not designed to be mounted on a vehicle.
• When adapter is installed, the user can move the rear part of the device up.
• When the adapter knob is moved to the closed position , the horizontal direction of the device may shift slightly.

1. Connect one end of the USB cable to the USB Type-C port (17) of your device and the other end to the USB port of your PC / laptop using a USB Type-A adapter.
2. Turn the device on with a short press of the ON/OFF (9) button (a device that has been turned off cannot be detected by your computer).
3. Your device will be detected by the computer automatically; no drivers need to be installed.
4. Two connection modes will appear on the display: Power and Memory Card (external storage device).
5. Select the connection mode with the UP (10)/DOWN (12) buttons.
6. Confirm the selection with a short press of the MENU (11) button.

Power

• In this mode, a PC/laptop is used as an external power supply. The status bar shows the icon . The device continues operating and all functions are available.
• Battery recharge feasibility depends on your computer’s USB port.
• When the USB is disconnected from the device when in the Power mode, the device keeps operating with the Battery Pack if it is available and sufficiently charged.

Memory Card (external memory)

• In this mode the device is detected by the computer as a flash card. This mode is designed for work with the files saved in the device’s memory. The device’s functions are not available in this mode; the device turns off automatically.
• If video recording was in progress when the connection was made, recording stops and the video is saved.
• If the device is in Memory Card mode and is disconnected from USB, the device will remain on.

Install the Stream Vision 2 application to download files, update firmware, control the device by remote control and broadcast images from your device to a smartphone or a tablet via WiFi.

We recommend using the latest version – Stream Vision 2.

You can find further guidelines on Stream Vision 2 here.

Download from Google Play

Download from App Store

Find answers to frequently asked questions about using Stream Vision 2 here.

Stream Vision 2 Manual

Android

iOS

1. Download the free Stream Vision 2 App in Google Play or App Store.

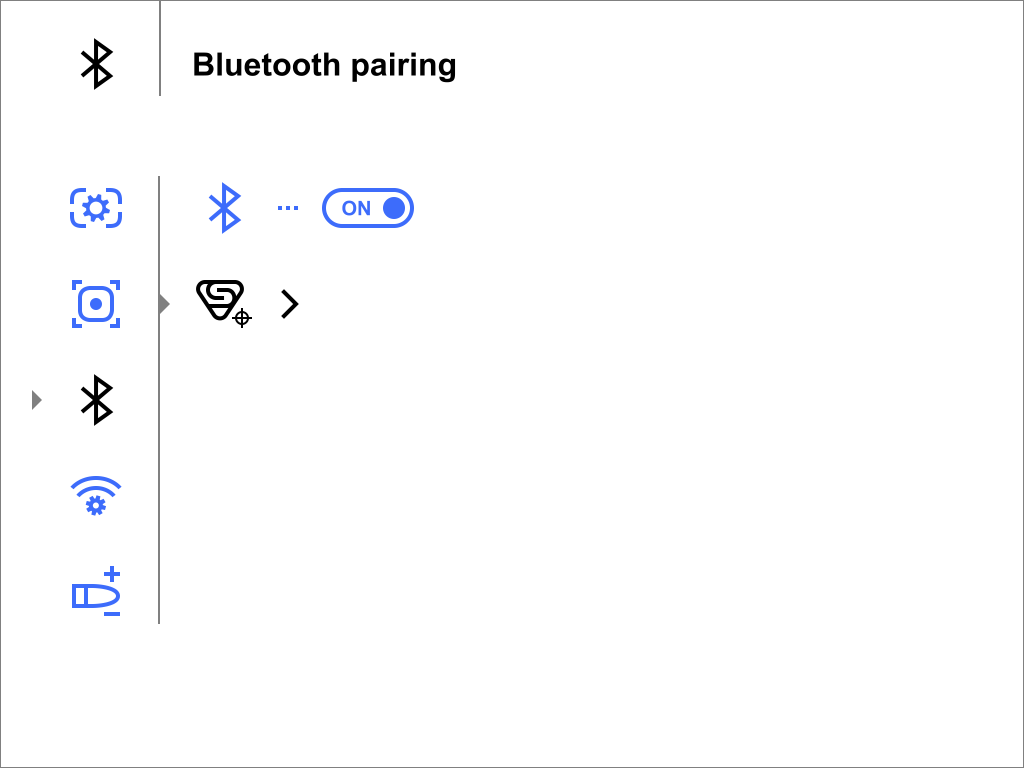

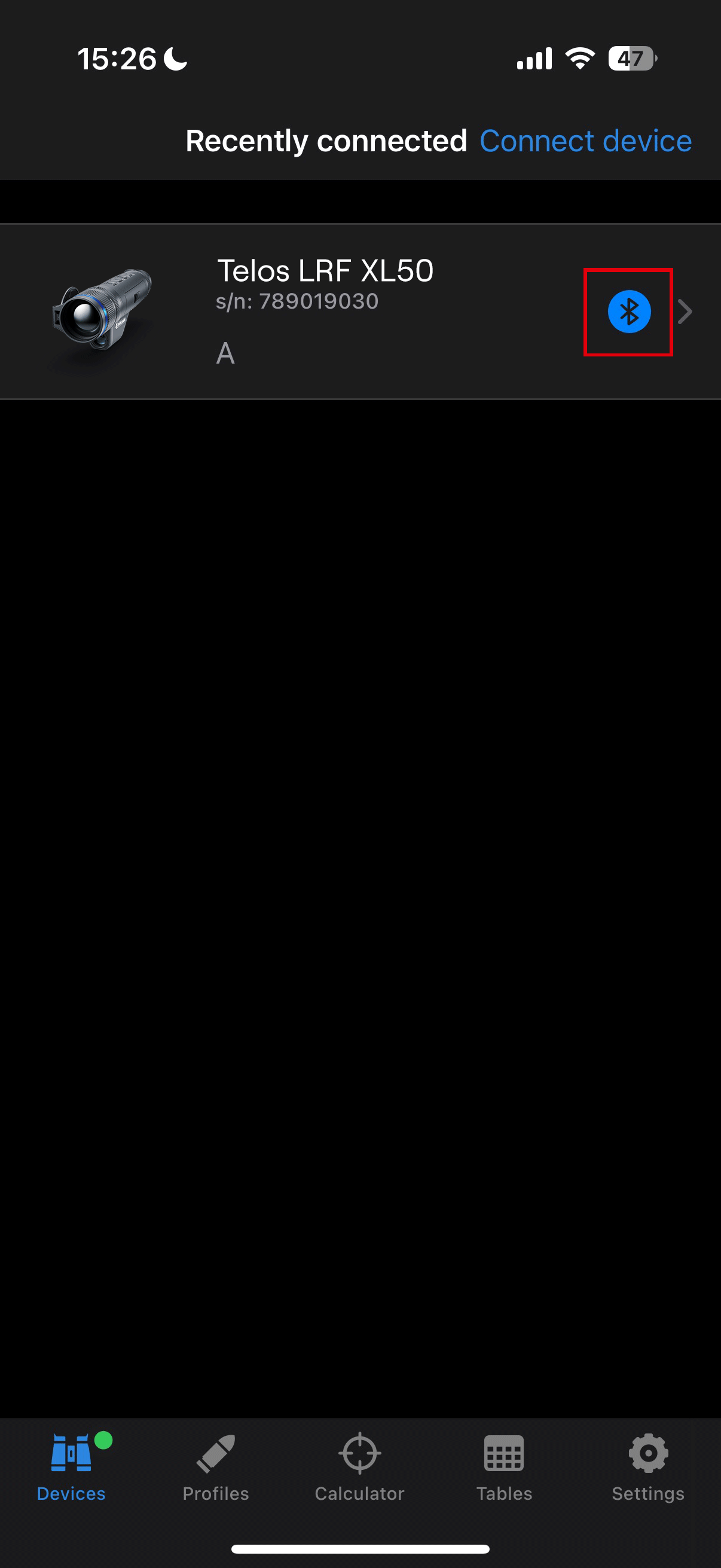

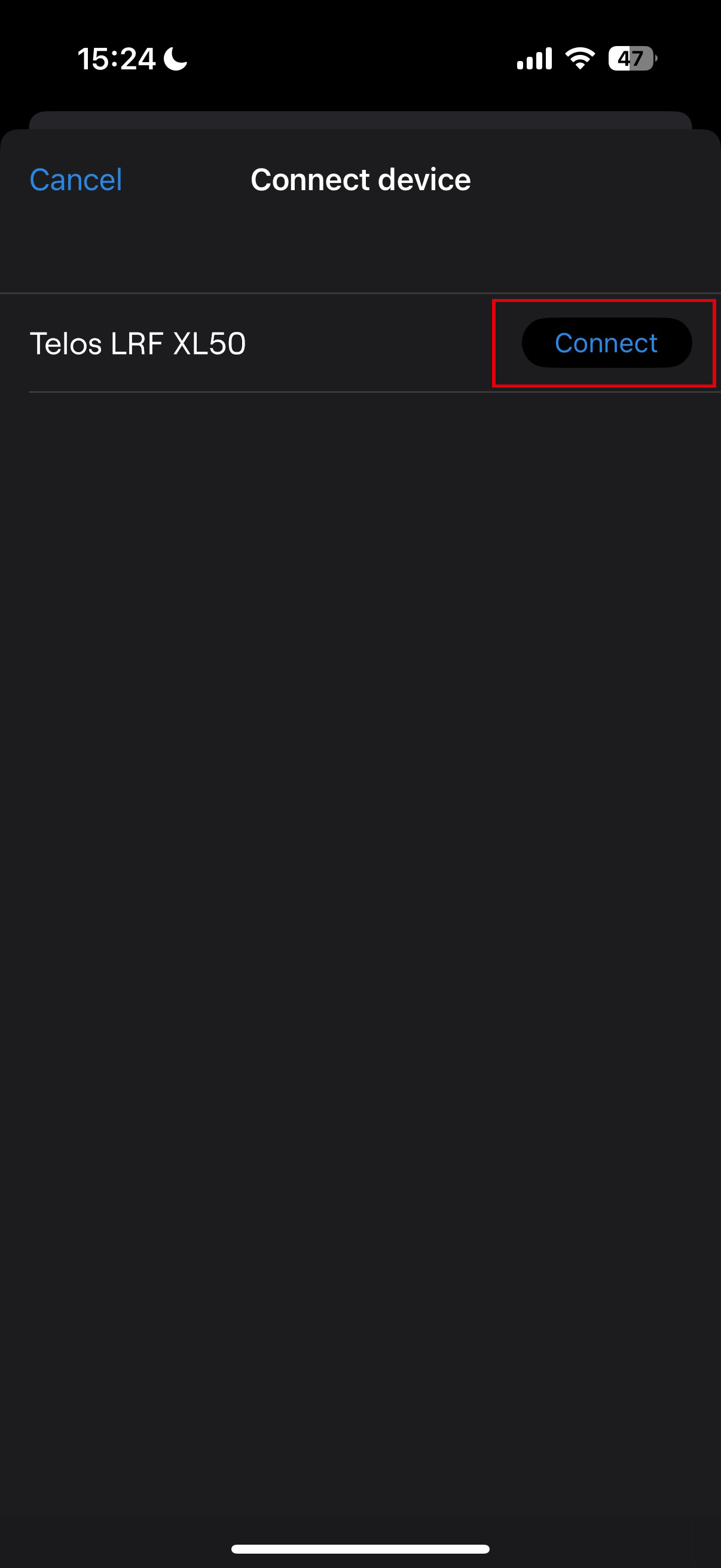

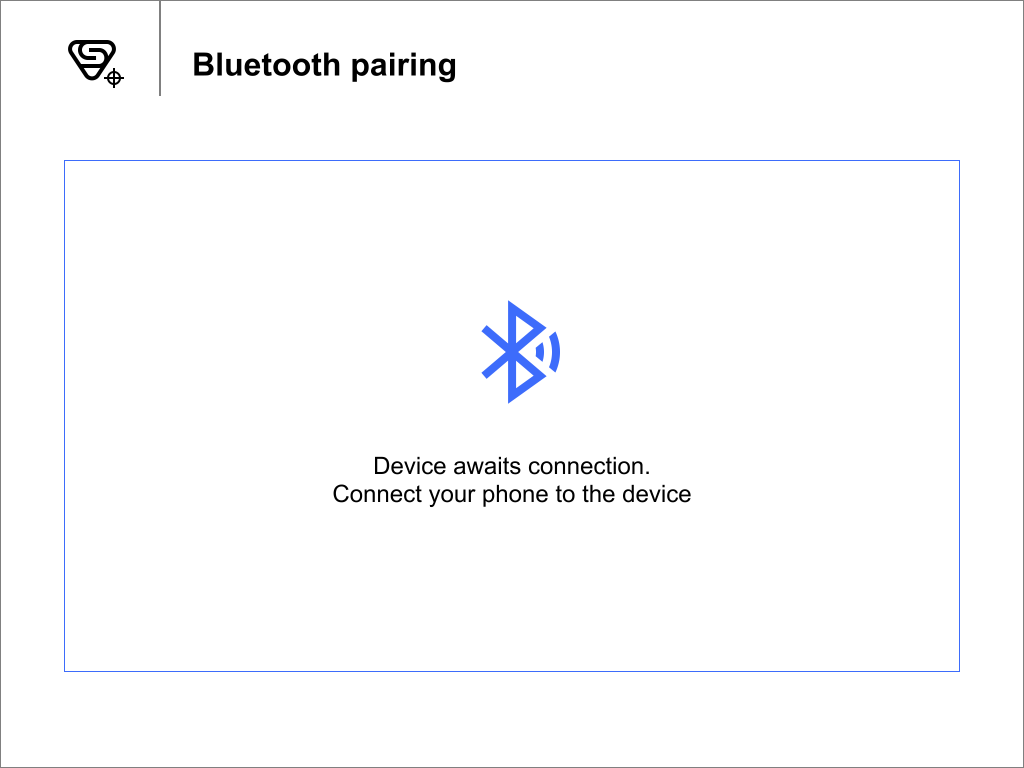

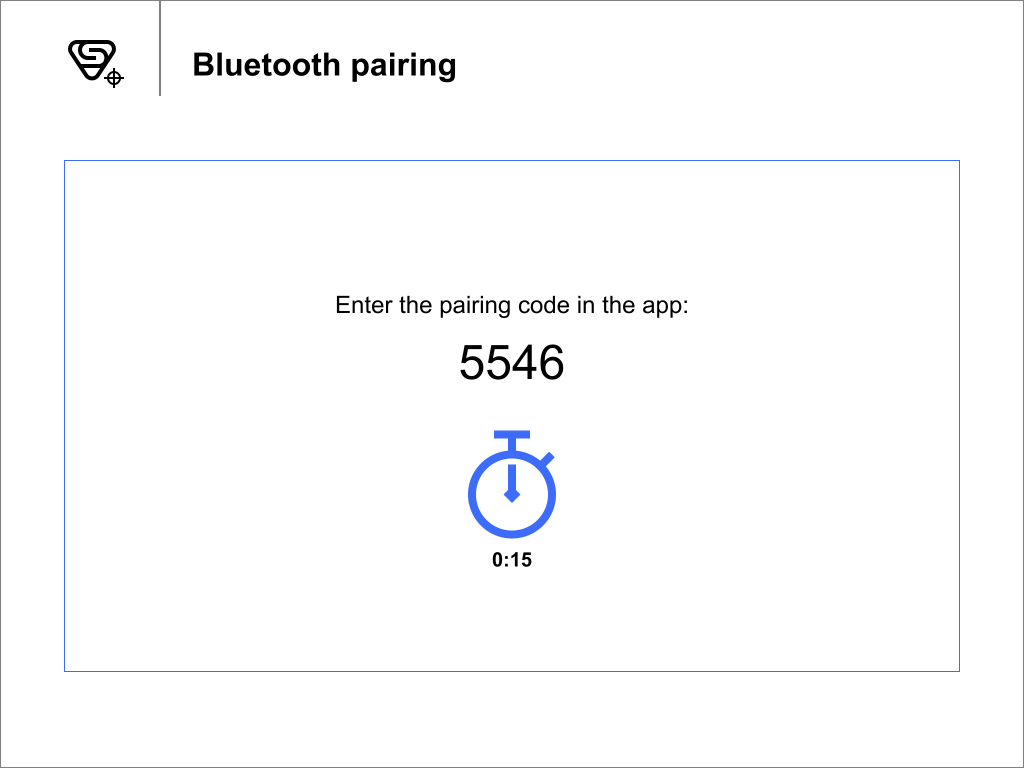

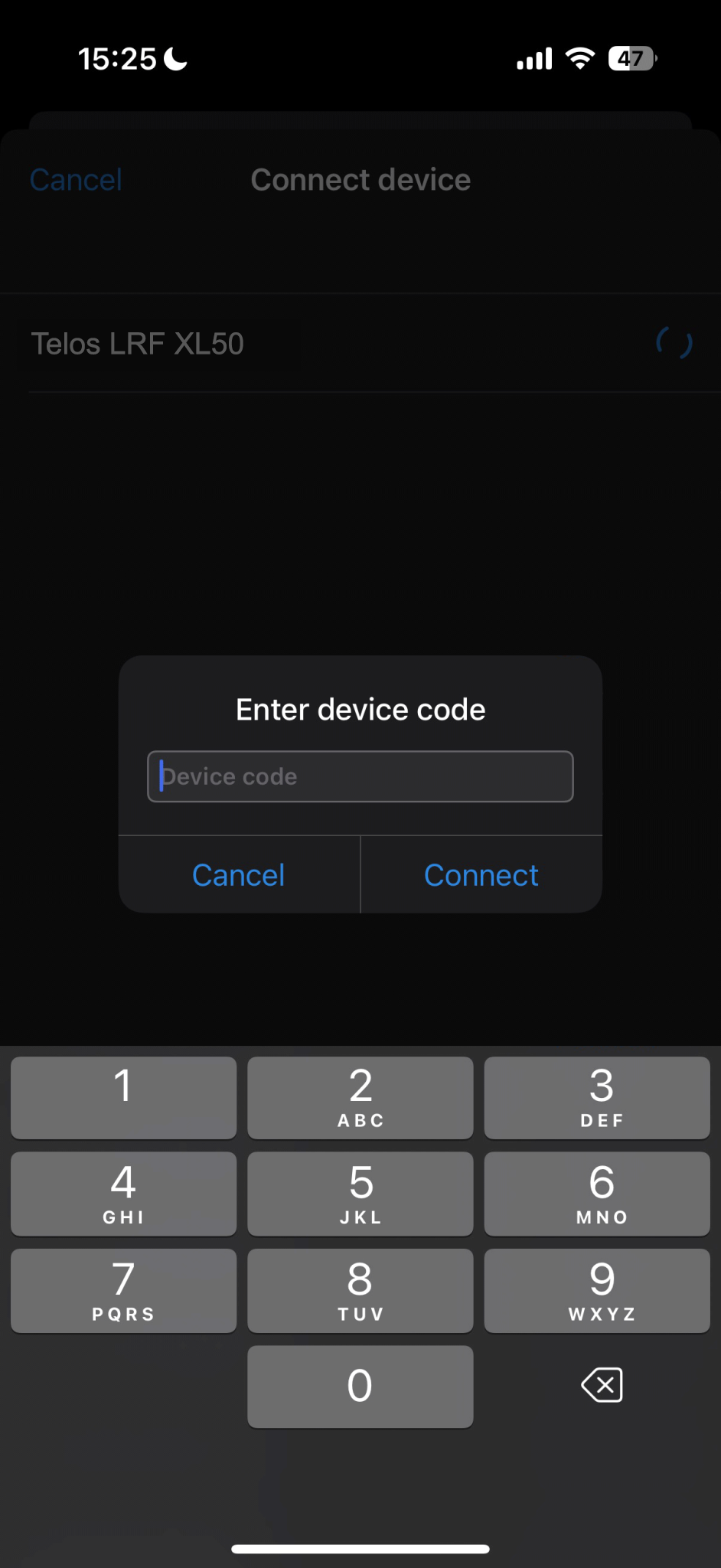

2. Connect your Pulsar device to your mobile device (smartphone or tablet).
3. Launch Stream Vision 2 and go to section “Settings”.
4. Select your Pulsar device and press “Check firmware update”.
5. Wait for the update to download and install. Pulsar device will reboot and will be ready to operate.

Important:

• if your Pulsar device is connected to a phone or mobile device, please turn on mobile data transfer (GPRS/3G/4G) to download update;
• if your Pulsar device is not connected to your phone or mobile device but is already listed in “Settings” > “My devices” section, you may use Wi-Fi to download update.

Find answers to frequently asked questions about using Stream Vision 2 here.

Is your firmware up to date?

Click here to check the latest firmware for your device.

It is recommended to inspect your device before each use. Check the following:

• The device should be free of any cracks or deformations.
• The lenses should be free of cracks, grease, dirt or debris.
• The battery level of the device should be full. Electrical sockets should be free of salts, oxidation, or other debris.
• All controls should be responsive.

Maintenance should be carried out at least twice a year and should include the following steps:

• Wipe the exterior surfaces of metal and plastic parts with a cotton cloth. Do not use chemically active substances, solvents, etc. as these will damage the paint.
• Clean the electrical contacts of the rechargeable battery on the device using a non-greasy organic solvent.
• Check lenses of objective, eyepiece and rangefinder. If necessary, remove dust and sand from the optics (it is preferable to use a non-contact method). Cleaning of the exterior surfaces of the optics should be done with cleaners designed especially for this purpose.
• Store the device in a carrying case. Remove the Battery Pack for long-term storage.
