RIFLE MOUNTS
Mounts, Accessories
RIFLE MOUNTS
We design each Pulsar riflescope with multiple mounting holes at the base. This way, you can choose the most comfortable position for installing the mount to achieve the optimal position of the riflescope.
RIFLE MOUNTS models

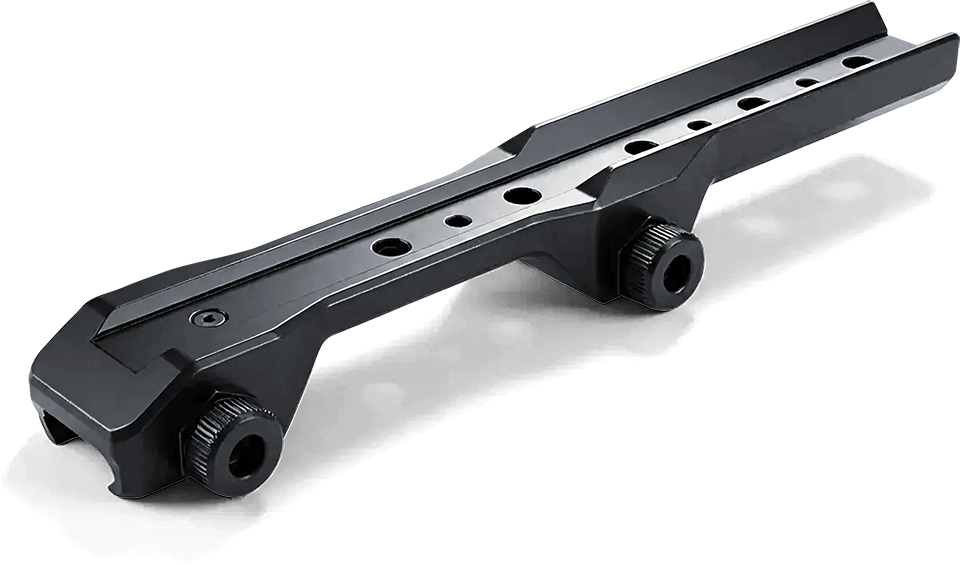

WEAVER N
|
Compatible with:
|
|
Total length of mounting part, mm |
103 |
| Distance between the centers of locking screws, mm |
87 |
| SKU (Model #) | 79209 |
WEAVER USQD
|
Compatible with:
|
A quick-release rifle mount for installing Pulsar riflescopes on hunting weapons equipped with Weaver/Picatinny-type rails. The mount has a reliable flag-locking system with a block against accidental opening. Weaver SQD locking mechanisms are secured with locking screws so the rifle mount can withstand intensive operation – multiple cycles of removing and installing, vibration and shock loading during firing, the accumulated effect of a large number of shots – including complete repeatability of mounting the riflescope with the rifle mount on the rail, maintaining the point of impact (adjusting) and accuracy of fire.
| Length of mounting part, mm | 148 |
| Distance between the centers of locking screws, mm |
112 |
| SKU (Model #) | 79202 |
WEAVER U
|
Compatible with:
|
The Weaver rifle mount is used to install riflescopes on hunting weapons and is equipped with Weaver/Picatinny-type rails. It is a basic type of rifle mount, which is fixed to the rail with steel stop screws. The front part of the rifle mount has a transverse stopper (pin), which prevents the riflescope from shifting during recoil. The pin is removable and bilateral. Its position depends on the rail (Weaver or Picatinny) on which the riflescope is mounted.
|
Length of mounting part, mm |
112 |
| Distance between the centers of locking screws, mm |
87 |
| SKU (Model #) |
79201 |
WEAVER SQD MOUNT
|
Compatible with:
|
|
Length of mounting part, mm |
148 |
| Distance between the centers of locking screws, mm | 112 |
| Total length, mm | 204 |
| SKU (Model #) | 79177 |
CZ550 MOUNT
|
Compatible with:
|
Compatible with riflescopes:
- PULSAR DIGISIGHT
- PULSAR APEX
- PULSAR TRAIL
| Length of mounting part, mm | 145 |
|
Distance between the centers of locking screws, mm |
120 |
| Total length, mm | 204 |
| SKU (Model #) | 79129 |
LOS/ DOVETAIL
|
Compatible with:
|
Compatible with riflescopes:
- PULSAR DIGISIGHT
- PULSAR APEX
- PULSAR TRAIL
| Compatible mounts | Can be installed on the “dovetail” rail with a maximum width 14,5 mm |
|
Length of mounting part, mm |
112 |
|
Distance between the centers of locking screws, mm |
87 |
| Total length, mm | 173 |
| SKU (Model #) | 79048 |
MAK ADAPTER
|
Compatible with:
|
Compatible with riflescopes:
- PULSAR DIGISIGHT
- PULSAR APEX
- PULSAR TRAIL
| SKU (Model #) | 79046 |
PRISM 14/200
|
Compatible with:
|
Compatible with riflescopes:
- PULSAR DIGISIGHT
- PULSAR APEX
- PULSAR RAIL
|
Length of mounting part, mm |
127 |
| Total length, mm | 275 |
| SKU (Model #) | 79047 |
WEAVER QD112
|
Compatible with:
|
|
Length of mounting part, mm |
148 |
|
Distance between the centers of locking screws, mm |
112 |
|
Total length, mm |
204 |
| SKU (Model #) | 79127 |
WEAVER MOUNT
|
Compatible with:
|
|
Length of mounting part, mm |
112 |
|
Distance between the centers of locking screws, mm |
87 |
| Total length, mm | 173 |
| SKU (Model #) | 79045 |
WEAVER LQD
|
Compatible with:
|
|
Length of mounting part, mm |
97 |
|
SKU (Model #) |
79203 |
